How to repair dead Boot Huawei devices

Smartphones with Huawei HiSilicon KIRIN 710

The HiSilicon Kirin 710 is a ARM-based mid-range Octa-Core-SoC for Android based smartphones and tablets. It was announced mid 2018 and contains 8 processor cores (4x Cortex-A73 at up to 2.2 GHz, 4x Cortex-A53 at up to 1.7 GHz, BigLITTLE), an ARM Mali G51 MP4, a dual-channel LPDDR4 memory controller and a LTE radio (600 Mbps down, 150 Mbps up). Therefore, the CPU part is similar to the Kirin 960 and 970 (both higher clocked), but the graphics card is a lot slower.

The Kirin 710 is manufactured at TSMC in 12 nm (compared to the 16nm Kirin 960 and 10nm Kirin 970).

in this tutorial i teach you how to repair Huawei dead boot (hiSilicon KIRIN 710)

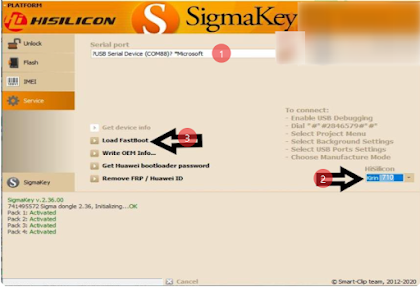

Open sigma key
Choose HISILICON platform
Do Test Point to enter USB COM 1

Wait for the phone to enter Fast boot Mode.
Read the phone information and go to download a ROM corresponding to the same information
Download Board Firmware.
Flash Board firmware via Sigma key or IDT Tool.
Finally flash the official firmware.

Smartphones with Huawei HiSilicon KIRIN 980

Huawei presented its new Kirin 980 at IFA 2018, an innovative SoC that will power the Huawei Mate 20 and Mate 20 Pro. What to fight against the Apple A12 at the end of the year, or even the Snapdragon 855 next year? The philosophy is quite different.

is to adopt an architecture with three types of cores: 2 Cortex A76 clocked at full power, 2 Cortex A76 under clocked and finally 4 Cortex-A55 low consumption. An astonishing decision, since all its competitors have (for the moment) remained on a so-called “big.LITTLE” architecture: high performance cores coupled with low consumption cores, without in-between. Snapdragon, Exynos and even Apple A all follow this philosophy.

As Mr. Hingant tells us, this change was motivated simply by the evolution of applications and user consumption habits. Often, high performance cores remain largely on standby and force a high consumption from the slightest use.

Open sigma key
Choose HISILICON platform
Do Test Point to enter USB COM 1

Wait for the phone to enter Fast boot Mode
Read the phone information and go to download a ROM corresponding to the same information
Download Board Firmware.
Flash Board firmware via Sigma key or IDT Tool.
Finally flash the official firmware.

Smartphones With Huawei MTK

The best way to Repair Dead Boot phones that have MTK processors is by reading flashes from other devices in Scatter or Bin format.

Must have a Box supporting Huawei MTK Flashing
Download DA File (For read or Flash scatter)
You can use SP Flash Tool With DA file

Smartphones With Huawei Qualcomm

The best and smoothest processors in the process of repair dead Boot and the method of work are divided into two parts

Flash Board It is a flash used to revive dead phones and it is a factory flash that is flashed by the fast boot mode or EDl.
Dump Flash It is the flash that is reads from other devices in EDL mode and is flashed to devices that have lost the boot.

Boxes that support these tasks

DC Phoenix: you can use this box to flash Board firmware in EDL, Fast Boot and Upgrade Mode. Its the best to repair Huawei dead boot. Also you can use CM2, NCK, EMMC, Sigma...

READ INFO HUAWEI All Model VIA CMD ( MINIMAL ADB )

First download Minimal ADB and Fast Boot Tool from Here

Minimal ADB and Fast Boot Application is compatible with all versions of windows OS, including windows XP to Windows 11 (32 or 64 bit).

Run Minimal ADB Application

Make phone in Fast boot Mode
Turn Off Phone
Press and hold volume down
Insert usb cable (Fast Boot Mode)

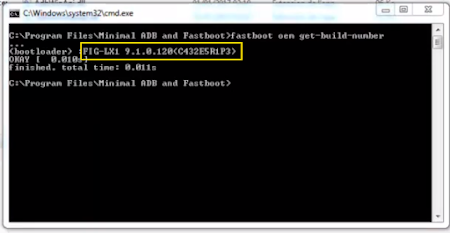

Copy and past this Command fastboot oem get-build-number

Press Enter
You will see Huawei phone information

Huawei OEM Files

OEM stands for “original equipment manufacturer”. In the smartphone industry, this term refers to companies who manufacture their own phones in their own factories.

Some examples of Android OEMs are Samsung, Huawei...

Huawei Firmware Region List
C00 China (Global / International / All Country / Factory)
C02 Europe Vodafone, German
C07 ATT , USA
C08 Ireland Vodafone
C10 Russia, Europe
C17 China, Asia Pacific
C21 Telefonica / O2
C22 China , Europe
C25 Argentina Claro
C27 Argentina Movistar
C32 Venezuela Movilnet, 05021PTS
C40 Czech Republic Telefonica / O2, Spain, Argentina Movistar Telefonica, Europe
C55 Italia TIM
C63 Venezuela, Telecom Movilnet, Canada
C85 T-Mobile, USA
C86 Spain Yoigo
C96 Belarus , Canada , MTS
C100 West European
C109 France
C110 Argentina, Personal , BGH
C112 Latin America
C113 Canada Wind
C119 Canada Videotron
C121 Turkey
C123 Switzerland
C128 Hungary telenor
C149 Belarus, LIFE
C150 Telecom /Telekom, Hungary, Germany, Poland, Europe
C151 India
C156 Indonesia , ASIA
C170 Russia
C173 Congo, Africa , West Europe, Other
C178 Botswana, Africa
C183 New Zealand, Australia
C185 Middle East & Africa , Latin America
C199 Middle East & Africa
C203 Belarus Velcom
C209 Asia Pacific
C223 Malaysia, South Asia
C232 Europe , General / Global / All country
C249 Serbia Telecom /Telekom
C271 Malaysia, Asia
C272 Asia Pasific, Australia
C301 Indonesia TAM
C324 Taiwan
C332 Argentina, Channel Other
C328 Angola, Africa
C358 Tunisia
C390 Asia
C428 Algeria, Africa , Indonesia
C429 France , Europe
C432 West Europe ,Europe , France
C433 Middle East
C440 France
C464 Argentina, Turkey, Arabic, Asia Pacific
C469 Argentina , Open market
C470 Asia, New Zealand , South Pasific ,Asia Pacific , Indonesia
C521 Argentina , Latin America
C530 Argentina Personal
C541 Myanmar, Asia Pacific
C555 Italy TIM
C557 Canada , Bell Canada
C561 Argentina , Latin America
C567 USA United States , Australia, Asia Pasific
C576 Israel
C578 Canada
C582 Canada SaskTel , Canada
C605 Latin America , Colombia
C607 MTC Belarus
C636 Australia, Asia Pacific
C637 Spain
C638 Botswana, Africa
C654 Canada Rogers
C699 Indonesia , Asia pasific
C675 India
C900 General / International / GlobalC900 General Free intern. Version.
